Inogeni 4KXUSB3- 4K Ultra HD to USB 3.0, Capture Uncompressed HDMI Video with Audio
63699
Inogeni 4KXUSB3- 4K Ultra HD to USB 3.0, Capture Uncompressed HDMI Video with Audio
63699
4KXUSB3 HDMI to USB 3.0 Converter requires no drivers. It is the most reliable and convenient PC input to capture uncompressed video with audio from your HDMI equipment for recording, editing, videoconferencing and streaming applications. It is compatible with Windows, macOS and Linux operating systems.

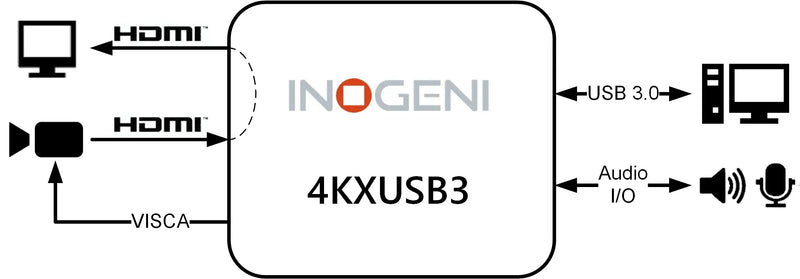

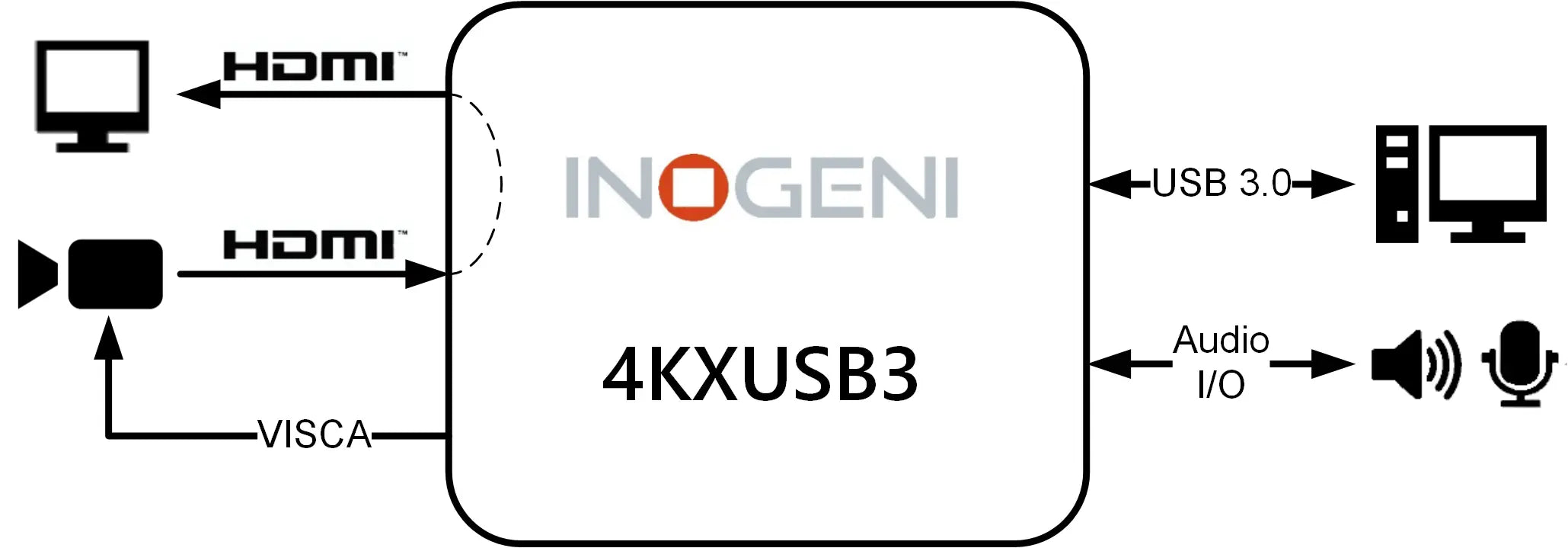

- HDMI capture to USB 3.0
- HDMI loop output
- VISCA port to control PTZ camera
- Direct Show Compatible
- Supports Ultra HD 4K, 1440p, 1080p, 1080i, 720p, 480p, and 576p video formats
- Supports 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 graphic formats
- Up to Ultra HD 4K (3840/4096x2160) at 30 fps and 1080p at 60 fps
- HDMI audio support - embedded audio in the HDMI signals are extracted and output as two-channel LPCM
- Digital Fluid technology - Internal frame buffers maximize frame rate with any PC
- Hardware-based color space and sampling conversion
- Automatic scaling and frame rate conversion (UHD up-scaling not supported)
- Customizable video processing functions
- Image controls: Brightness, contrast, saturation and hue settings. These controls work on all formats below 4K but not 4K
- Supports multiple devices on the same PC
- Powered from USB 3.0 port
- Compatible with Windows, Mac OSX, Linux and Android
- A USB 3.0 cable is included
- Compatible with BARCO ClickShare Conference
Specifications
HDMI Input |
|
|---|---|
| Connector | 1 x HDMI 1.4a |
| Video Resolution | 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960,1280x800, 1024x768, 800x600, 640x480 |
| Frame Rates | 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max. |
| Color Space | RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB) |
| Sampling Rate | 297 MHz |
| Embedded Audio | Ch 1&2 48kHz LPCM |
| HDCP Copy Protection | INOGENI will not decrypt BD/DVD movies, satellite/cable receivers or other encrypted sources. |
HDMI Loop Output |
|
| Connector | 1 x HDMI 1.4a |
| Video Resolution | Same as HDMI input |
USB 3.0 Output |
|
| Connector | 1 x USB Type-C (USB 3.0) |
| Codec | YUY2 4:2:2 and NV12/I420/YV12 4:2:0 for USB 3.0 MJPEG for USB 2.0 |
| Video Scaler | Automatic hardware based |
| Color Space Conversion | Automatic hardware based |
| Sampling Conversion | Automatic hardware based |
| Frame Rate Conversion | Automatic hardware based |
| Audio | 2-channel LPCM audio from HDMI and/or from Audio Jack |
Audio Input |
|
| Connector | 1 x 3.5mm analog audio jack (MIC or LINE level) |
Audio Output |
|
| Connector | 1 x 3.5mm analog audio jack (LINE level) |
Audio Mixing |
|
| Mixing functionality | HDMI audio and analog audio inputs are mixed over the USB input interface. USB audio output and HDMI audio input are mixed over the analog audio output. Use Control App in order to manage audio layout. |
PTZ control |
|
| Connector | 1 x Terminal block for VISCA control from UVC interface RS232 interface Baud rate @ 9600 |
Compatibility |
|
| Operating System | NO driver installation necessary Windows 7 and above (32/64-bit) Mac OSX 10.10 and above Linux (kernel v2.6.38) and above |
| Host Requirements | USB 3.0 |
| Motherboard | Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic |
| Cameras Supported | Cameras and camcorders with an HDMI output |
| Software Compatibility | UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation. |
| Note to VAR/INTEGRATORS – this data is organized by product and may be duplicated for inclusion in a design or bid specs. It does vary from converter to converter. If you would like the same data in a .doc or .txt format please let us know. | |
| Dimensions & Weight | 3.9” x 2.9” x 0.75” 140g |
| Operating Temperature | 0° to 45° C (32° to 113° F) |
| Storage Temperature | -40° to 105° C (-40° to 221° F) |
| Relative Humidity | 0% to 90% non-condensing |
| USB Power | 5V, 900mA |
| UPC Code | 040232378935 |
| Origin | Canada |
| Warranty | 2 years |
