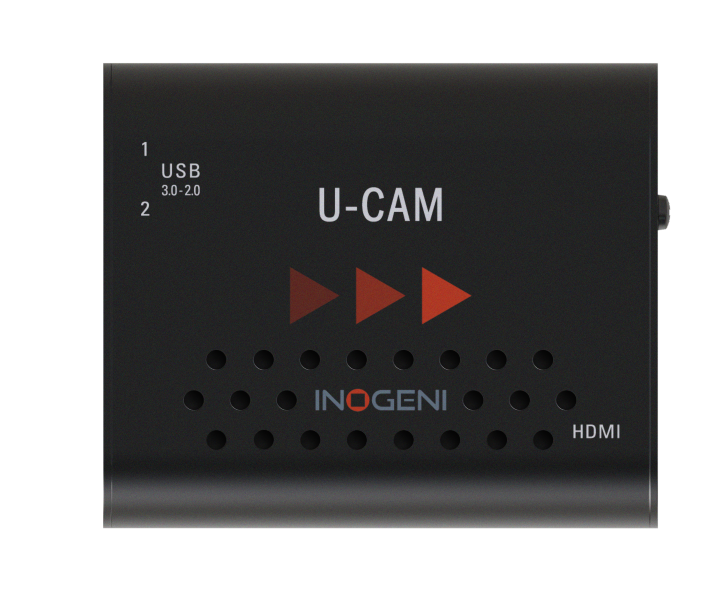

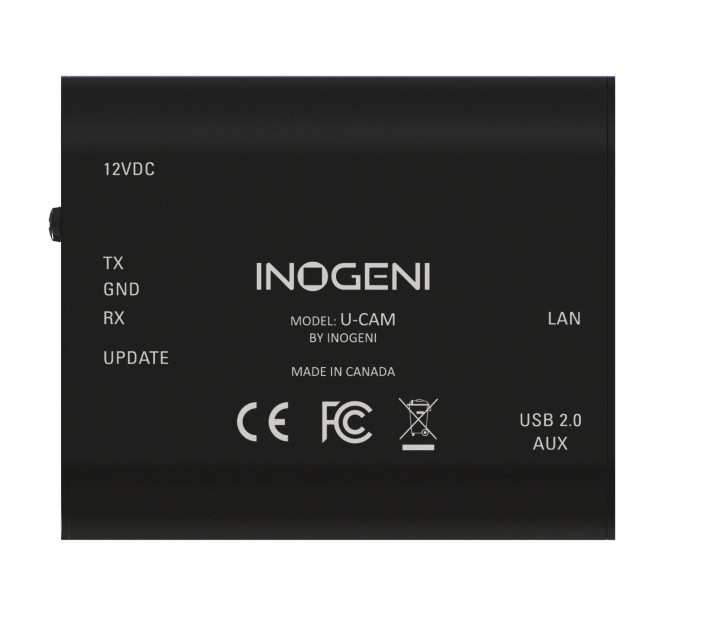

Inogeni U-CAM – USB 3.0 Camera to HDMI converter
66599
Inogeni U-CAM – USB 3.0 Camera to HDMI converter
66599
Convert & connect your USB camera and audio to an HDMI input - CODEC, matrix or display
A proven technology device that captures uncompressed USB 3.0/2.0 video (up to 4K) and audio, then converts it to HDMI with embedded audio.
- Capture video & audio from USB 3.0 and 2.0 cameras
- IP control
- Field upgradable
- RS-232 control
- Compatible with Windows, macOS and Linux laptops
- Video input capabilities
-Up to 1080p60 uncompressed with USB 3.0 (YUYV)
-Up to 4K30 uncompressed with USB 3.0 (I420/YV12 and NV12)
-Up to 1080p30 MJPEG with USB 2.0/3.0
- Video output capabilities
- HDMI 1.4 up to 4K30
- USB 2.0 720p30 MJPEG
Applications

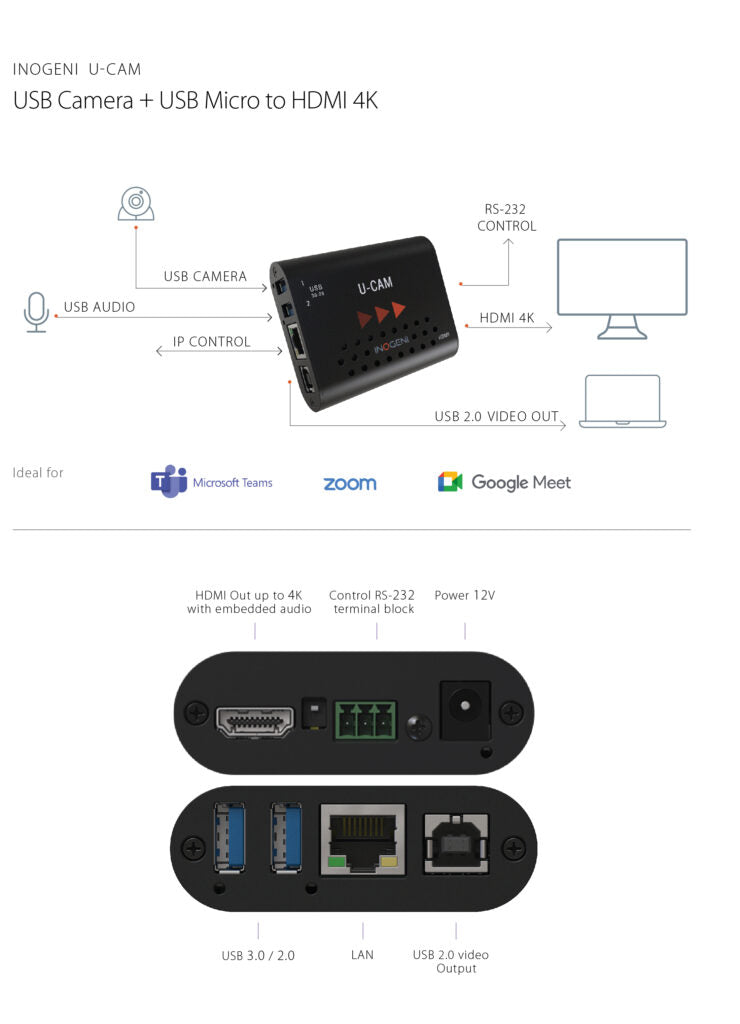

Convert USB Devices to HDMI System or Montior (Image Example in Photos)

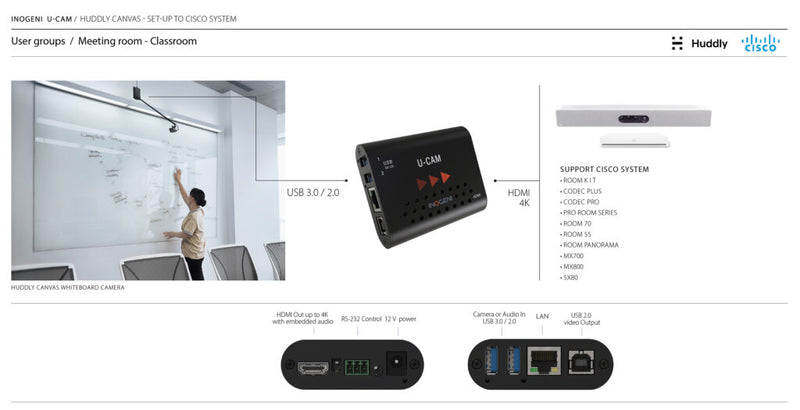

Huddly Canvas- Set up to Cisco System (Image Example in Photos)
Specifications
| USB INPUT | ||

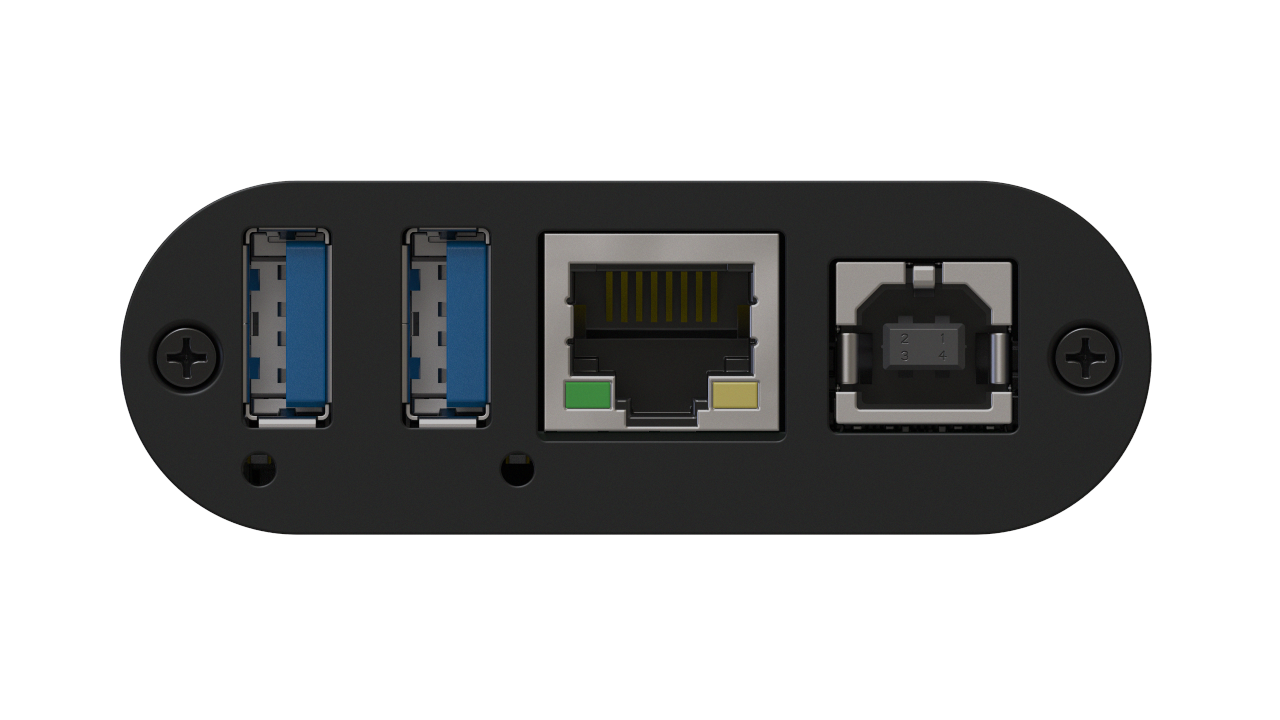

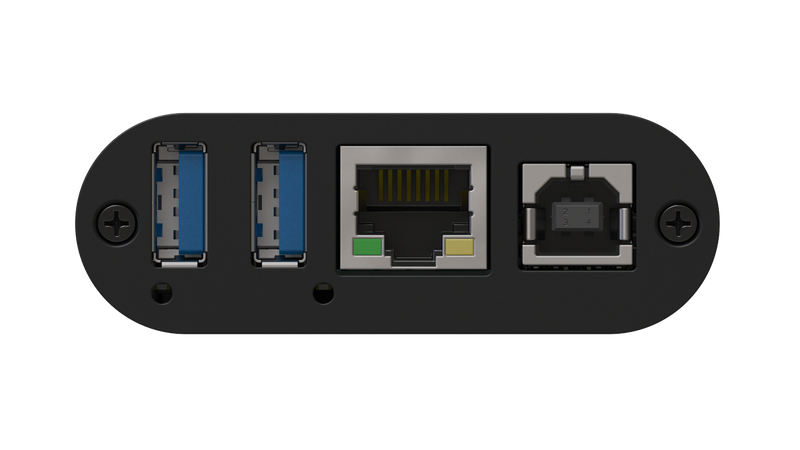

| 2x USB 3.0 inputs | Capture video and audio from USB 3.0 and 2.0 cameras Capture is done from a single camera at a time |
|
| Video capabilities | MJPEG: Up to 1080p30 using USB 2.0/3.0 | |
| Video capabilities | YUYV: Up to 1080p60 using USB 3.0, 1080p10 using USB 2.0 | |

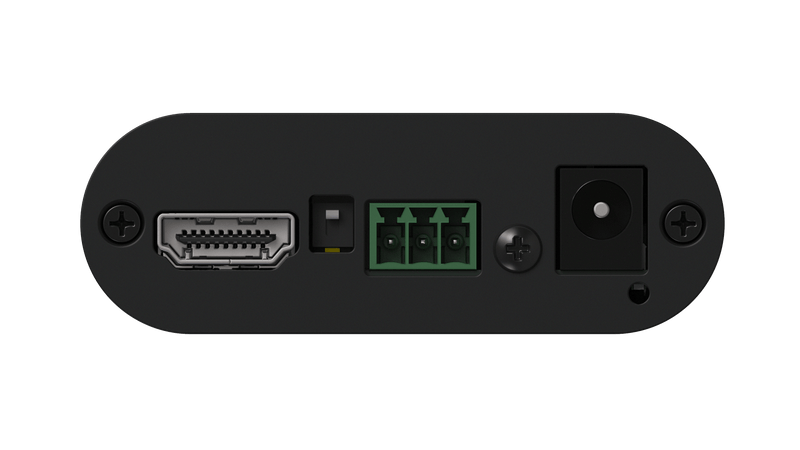

| HDMI OUTPUT | ||
| Resolution | 3840x2160p23.98/24/25/29.97/30 fps, 1080p50/60 fps, 720p50/60 fps | |
| Connector | HDMI | |
| Video passthrough to USB 2.0 connector | ||
| Output USB 2.0 | Device will expose a UVC interface over USB 2.0 up to 720p30 MJPEG | |
| COMPATIBILITY | ||
| Operating System | NO driver installation necessary | |
| Windows 7 and above (32/64-bit) | ||
| macOS 10.10 and above, | ||
| Linux (kernel v2.6.38) and above | ||
| Cameras Supported | Cameras (or video Source) with an USB output | |
| Software Compatibility | UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation. | |
| Dimensions & Weight | (L x W x H) 7,0cm x 8,3cm x 2,3cm / 2.75” x 3.25” x 0.9” 138 g / 0.30 lb | |
| Operating Temperature | 0° to 45° C (32° to 113° F) | |
| Storage Temperature | -40° to 105° C (-40° to 221° F) | |
| Relative Humidity | 0% to 90% non-condensing | |
| Power | 12VDC | |
| UPC Code | UPC Code: 040232609015 | |
| Origin | Canada | |
| Warranty | 2 years | |
| IP INTERFACE | ||
| 100 mbps | ||
| CAMERA CONTROL | ||
| Connectors | ||
