Saros® In-Ceiling Tile Loudspeaker
27500
28400
Saros® In-Ceiling Tile Loudspeaker
27500
28400
This product is shipped directly from the Manufacturer. Please inquire for shipment information.
Saros® In-Ceiling Tile Loudspeaker
Specifications
| Performance | |
| Transducers | 5 inch woofer with dome tweeter |
| Beamwidth | 120° |
| Impedance | 8 Ohms nominal with transformer set to "8-ohm" |
| Frequency Range | 70 Hz to 18 kHz (+3/-10 dB) |
| Transformer Taps | 1 W, 2 W, 4 W, 8 W, 16 W @ 70 V; 2 W, 4 W, 8 W, 16 W @ 100 V; Selectable with rotary knob |
| Power Handling | 30 W for LoZ operation |
| Nominal Sensitivity | 90 dB at 1 W/ 1 m |
| Connections | |
| Input | (1) 4-pin 5 mm detachable terminal block; Speaker input with parallel pass-thru; Maximum Wire Size: 12 AWG |
| Controls | |

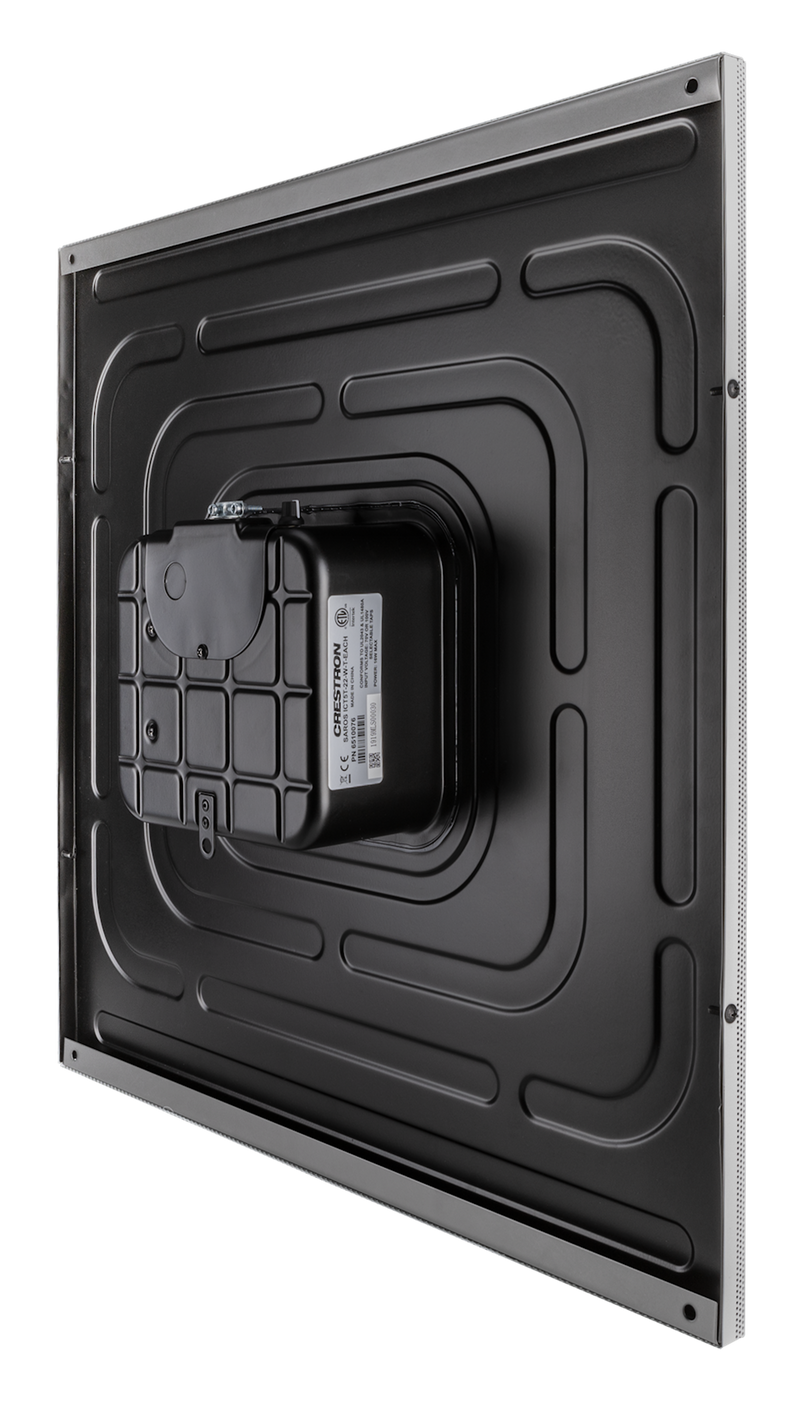

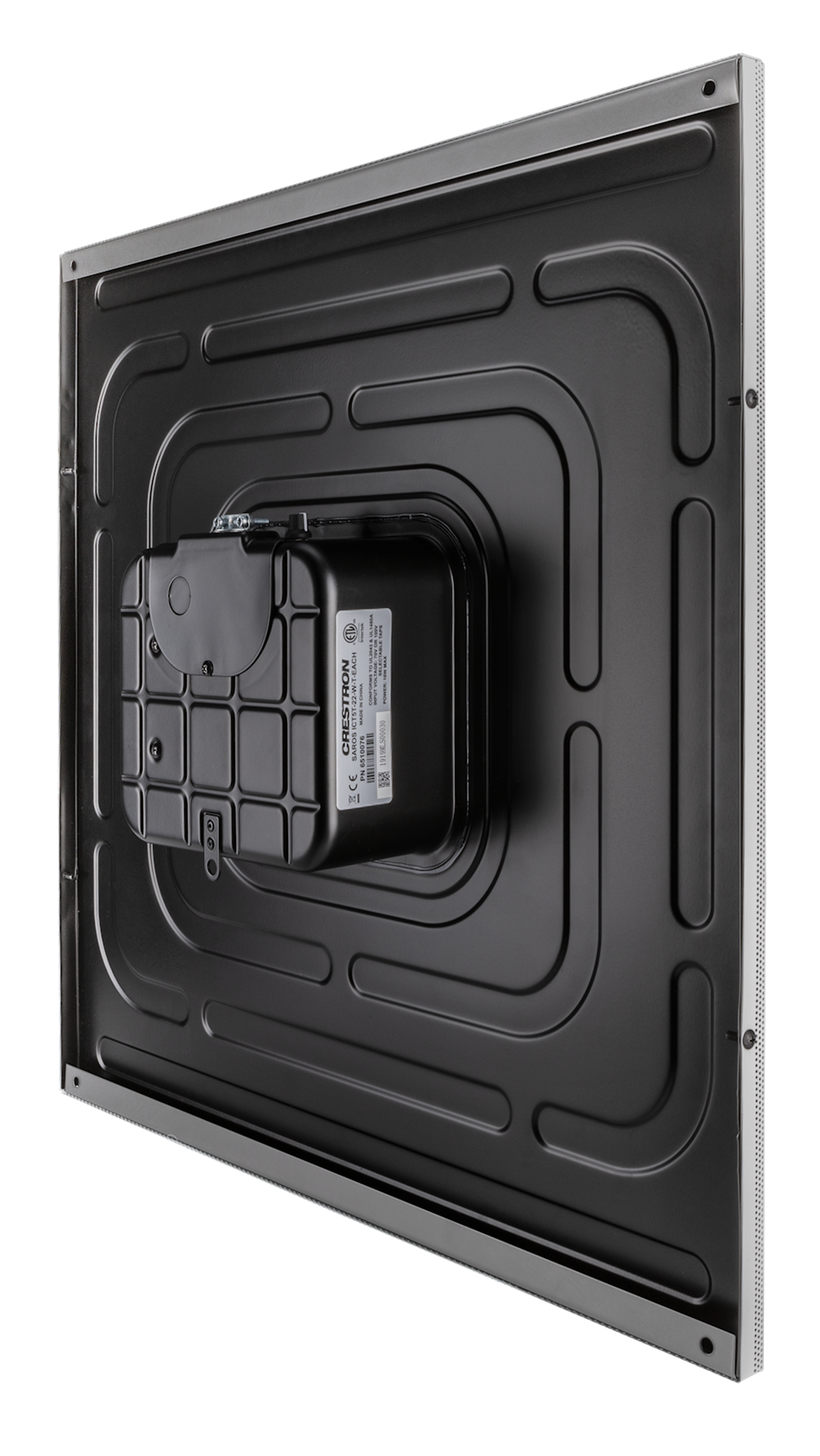

| Transformer Tap | (1) Rotary knob on plenum side of the loudspeaker enclosure; Used to select 70/100 V tap or 8 Ohms (bypass) |
| Environmental | |
| For indoor use only | |
| Construction | |
| Enclosure | Steel, painted black with 5 tether attachment points |
| Baffle | Steel, painted black |

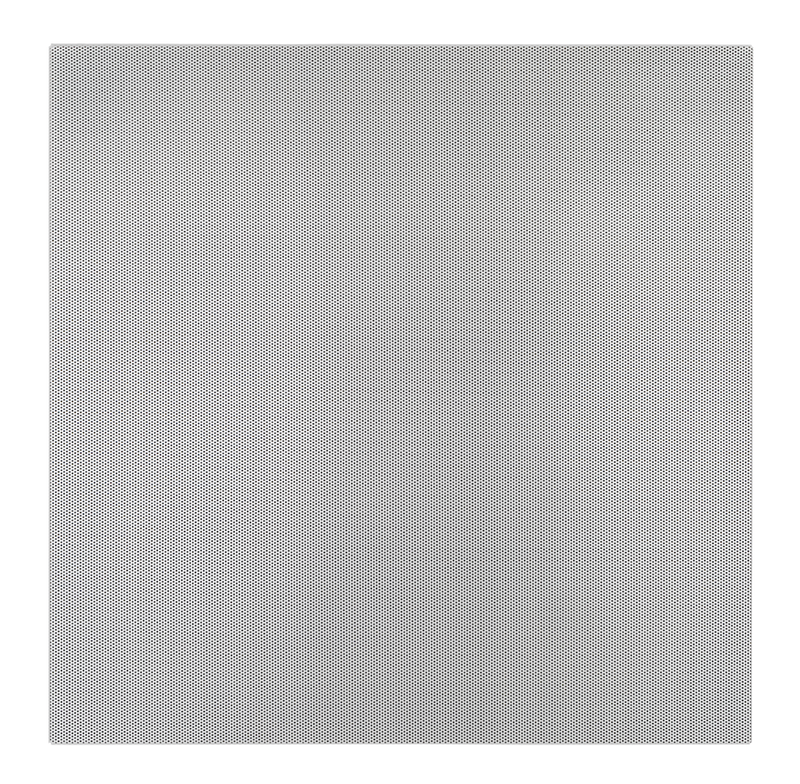

| Grille | Steel, painted white |
| Installation | Lays onto suspended ceiling grid; Ships with 1 cross tee accessory per loudspeaker, 24 in. length, 15/16 in. face profile, staked-on end clips. Two cross tees per box. |
| Dimensions | |
| Height | 4.00 in |
| Width | 23.75 in |
| Depth | 23.75 in |
| Weight | |
| 12.45 lb (5.6 kg) | |
| Compliance | |
| UL 1480A, UL 20431 | |
