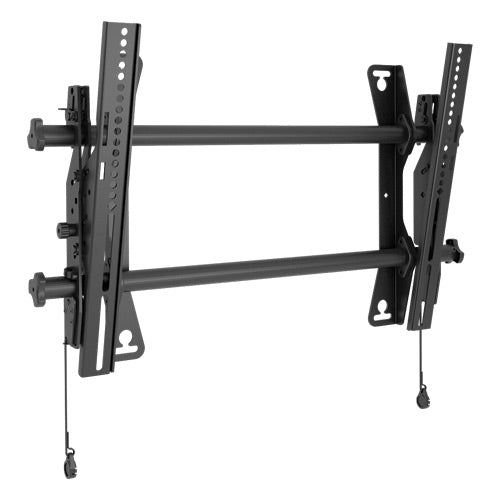

Medium Fusion Tilt Wall Mount

Legrand

MTA1U

18299

Description

Chief's Fusion tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion features include Centerless shift, Centris tilt and ClickConnect Latching.

Benefits included increased stability, fast installation, easy cable management and security. The installer-inspired Fusion tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.

Key Features

Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
Centerless Shift provides up to 17.5" (445 mm) of post-installation lateral shift - 8.75" (222 mm) left/right of uprights - for limitless centering
Centris low-profile tilt uses the center of gravity to balance the screen while maintaining a low profile
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away

Specifications

Certifications	UL Listed, OSHPD Approved, TÜV Certified
Color	Black
Lateral Shift	12.9" (327 mm)
Minimum Depth	2" (51 mm)
Mounting Pattern Compatibility (Universal Versions)	100 x 100 - 650 x 400 mm
Number Of Monitors	1
Overall Dimensions (H x W x D)	16.5 x 25.75 x 2" (419 x 654 x 51 mm)
Shipping Weight	15.86 lbs (7.19 kg)
Solution Type	Universal
Tilt	+2°, -12°
Typical Screen Sizes	32 - 65"
Wall Stud Compatibility In	16" - 24" (406 mm - 610 mm)
Weight Capacity	125 lbs (56.7 kg)
Orientation	Landscape
